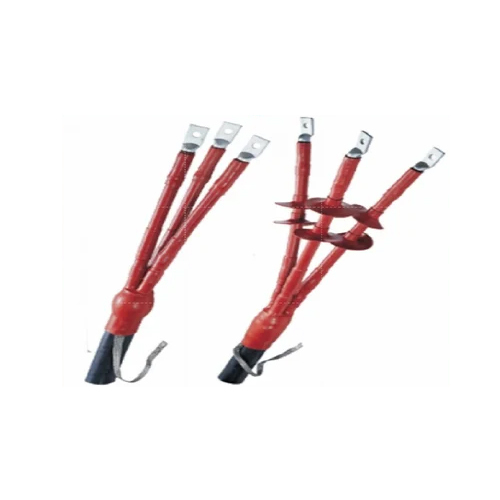

Raychem Cable Jointing Kits

Name: Raychem Cable Jointing Kits
Brand: PINNACLE MARKETING
Price: 2000 INR
Availability: InStock

Price 2000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Raychem Cable Jointing Kits Specification

Core Material
Copper or Aluminium

Rated Temperature
Up to 90C

Conductor Shape
Round/Sector (Depends on cable structure)

Impedance
Standard as per cable specification

Operating Temperature
-40C to +100C

Insulation
Heat shrink, Non-tracking insulation

Diameter
As per cable diameter

Cable Type
HT/LT Power Cable (XLPE/PVC)

Dielectiric Strength
High dielectric withstand as per IEC standards

Armored Material
Not applicable or Steel (for armored cable types)

Install Type
Outdoor/Indoor, Straight joint/Termination

Number of Conductor
Single Core/Three Core

Locking Type
Shrinking fit with adhesive

Tensile Strength
High mechanical strength

Conductor Type
Stranded or Solid

Weight
Depends on kit size (typically 1-3 kg)

Features
Heat Shrinkable, Reliable insulation, Moisture-proof, High dielectric strength, Compact design, Easy installation

Core Number
1, 3, or as per kit

Usage & Applications
Underground and Overhead Cable Jointing/Termination

Product Type
Raychem Cable Jointing Kits

Length
Standard and customized lengths available

Voltage
Up to 36 kV (as per kit type)

Insulation Material
Cross Linked Polyolefin (XLPE), Heat Shrinkable material

Application
Industrial, Power Station

Conductor Material
Copper/Aluminium (as per cable type)

Jacket Material
PVC

Storage Temperature
-10C to 40C

Connector Color
Metallic (Lugs)

Shield Material
Copper mesh or tape (depends on cable type)

Jacket Color
Red

Dimension (L*W*H)
Varies as per kit (customized for cable size)

Material
Heat Shrinkable Polyolefin

Color
Red (primary)

Size
For 1.1kV, 11kV, 22kV, 33kV cables; multiple sizes

Packing Type
Compact service kit box

Minimum Bending Radius
As per cable specification, typically 12x cable diameter

Chemical Resistance
Resistant to acids, alkalis and many chemicals

Shelf Life
Minimum 10 years under recommended storage

Flame Retardant
Yes, self-extinguishing material

Suitable for Cable Range
Up to 1000 sq.mm (as per kit type)

Standards Compliance
Meets IEC, IS, and IEEE Standards

Sealing Type
Dual sealing with mastic and heat shrink sleeve

Waterproof Rating
IP68 (subject to correct installation)

UV Resistance
Excellent, suitable for outdoor use

Installation Accessories Included
Comprehensive kit with Mastic, Cleaning Tissues, Connectors, Installation Guide

Raychem Cable Jointing Kits Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
100 Pieces Per Week

Delivery Time
7 Days

About Raychem Cable Jointing Kits

Experience exclusive access to Raychem Cable Jointing Kits-brilliantly engineered for prodigious performance in power distribution and industrial infrastructure. Each kit meets IEC, IS, and IEEE standards, ensuring superb reliability and safety. Benefit from dual sealing with mastic and heat shrink sleeve, achieving an IP68 waterproof and UV-resistant finish, suitable for the harshest outdoor environments. Our comprehensive kits include all essential installation accessories in a compact service box. With a shelf life of up to 10 years, high dielectric strength, and flame-retardant, self-extinguishing materials, grab this superb insulation solution for cables up to 1000 sq.mm, suitable for voltages up to 36kV.

Versatile Applications & Reliable Usage

Raychem Cable Jointing Kits excel in diverse environments including industrial sectors, power stations, and substations. The kits are superbly suited for both underground and overhead cable jointing and terminations, accommodating high-tension (HT) and low-tension (LT) XLPE or PVC insulated cables. Designed for indoor and outdoor use, their heat shrink technology is ideal for straight joints and terminations. This exclusive product supports cable sizes up to 1000 sq.mm, making it a brilliant choice for demanding applications.

Sample Policy, Certifications & Export Details

For potential clients, Raychem offers samples at an asking price, with seamless delivery and handover processes to ensure client satisfaction. All kits are delivered with test certifications, confirming compliance with international standards like IEC, IS, and IEEE. Our major export markets include Asia, the Middle East, and Africa. We ensure that every product meets exceptional quality standards, giving customers worldwide prodigious confidence in their installations.

FAQ's of Raychem Cable Jointing Kits:

Q: How do Raychem Cable Jointing Kits ensure safety and reliability during cable installation?

A: Raychem Cable Jointing Kits employ dual sealing with mastic and heat shrink sleeves, meeting stringent IEC, IS, and IEEE standards. This provides IP68 waterproof protection, excellent UV resistance, and high dielectric strength, ensuring safe and reliable performance in all conditions.

Q: What types of cables and applications are these kits suitable for?

A: These kits are designed for use with high-tension and low-tension power cables, XLPE/PVC insulated, ranging up to 1000 sq.mm and voltages up to 36kV. They are perfect for both underground and overhead cable jointing or termination in industrial, power station, and substation environments.

Q: Where can Raychem Cable Jointing Kits be effectively installed?

A: The kits are ideal for both indoor and outdoor installations. Their robust, UV-resistant and flame-retardant materials make them suitable for demanding industrial and power infrastructure locations, including underground vaults and overhead setups.

Q: What is the typical process for installing a Raychem Cable Jointing Kit?

A: Each kit includes comprehensive installation accessories-mastic, cleaning tissues, connectors, and a detailed guide. The process includes cleaning the cable, applying mastic and heat shrink components, and ensuring a snug fit around the cable for secure, moisture-proof insulation.

Q: What are the key benefits of using Raychem Cable Jointing Kits over conventional solutions?

A: Raychem kits offer prodigious ease of installation, high mechanical and dielectric strength, a long service life, and resistance to water, UV, chemicals, and fire. Their superb sealing ensures reliable operation even in harsh environmental conditions.

Q: When and how can clients request samples of the jointing kit?

A: Clients may request product samples at a nominal asking price. Upon confirmation, the sample kits are promptly delivered and handed over with necessary documentation, including test certificates demonstrating standards compliance.
